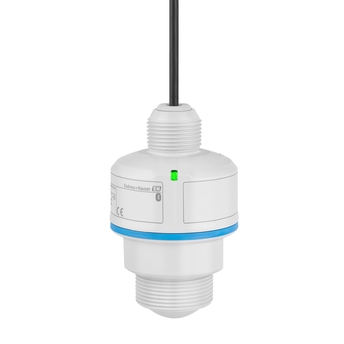

Micropilot FMR20B - product picture

Micropilot FMR20B - radar sensor for basic applications

Simple and efficient level measurement in liquids and solids

FMR20B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

This product is not available in this market.

*Please contact your Endress+Hauser sales partner for any further questions.

FMR10B, 40mm antenna
  • F
  • L
  • E
  • X
©Endress+Hauser

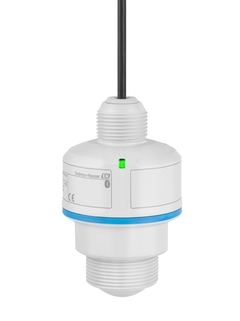

Micropilot FMR20B, 80 mm antenna
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR20B, 40 mm antenna, lateral cable outlet
  • F
  • L
  • E
  • X
©Endress+Hauser

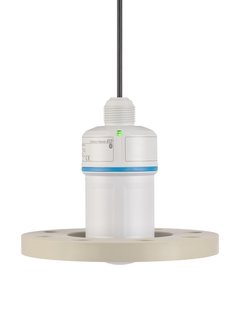

Micropilot FMR20B, 80mm antenna, slip on flange
  • F
  • L
  • E
  • X
©Endress+Hauser

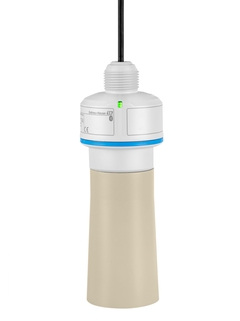

Micropilot FMR20B, 40 mm antenna, flooding protection tube
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    +/- 2mm (0.08")

  • Process temperature

    -40…+80°C
    (-40…+176°F)

  • Process pressure / max. overpressure limit

    -1…3 bar
    (-14,5…43 psi)

  • Max. measurement distance

    40 mm/ 1-1/2": 20m (65.6 ft)
    80 mm/ 3": 30m (98.4 ft)

  • Main wetted parts

    PVDF, PBT/PC

Field of application

The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.

The Micropilot FMR20B is a free space radar device with a measuring range of up to 30m (98ft) for liquid and solid applications in the Water & Wastewater, Mining, Minerals & Metals and Food & Beverage industries, as well as for utility applications across all industries:

  • Open baisins

  • River monitoring

  • Sewer management

  • Pump station / lift station

  • Open channel flow

  • IBC and storage tanks

  • Silos

  • Stockpiles

  • Pneumatic conveying

Benefits

  • Fast commissioning and operation thanks to guided setup sequences (wizards)

  • Bluetooth connectivity enables easy, reliable and encrypted wireless remote access

  • Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED

  • Simple device selection thanks to clear segmentation and easy configuration

  • Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption
