Micropilot FMR30B - product picture

Micropilot FMR30B - radar sensor for basic applications

Simple and efficient level measurement in liquids and solids

FMR30B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

This product is not available in this market.

*Please contact your Endress+Hauser sales partner for any further questions.

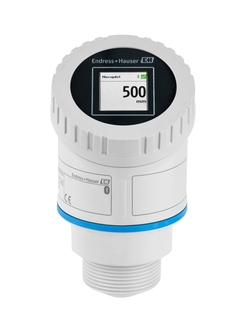

Micropilot FMR30B, 40mm antenna, light mode display
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR30B, 40mm antenna, light mode display
  • F
  • L
  • E
  • X
©Endress+Hauser

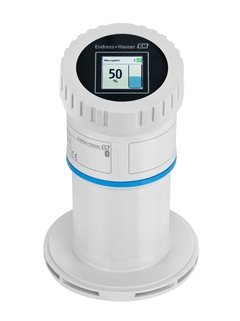

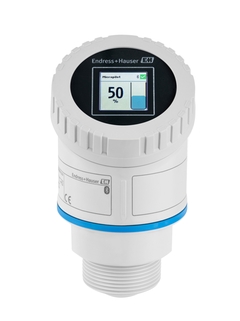

Micropilot FMR30B, 80mm antenna, light mode display
  • F
  • L
  • E
  • X
©Endress+Hauser

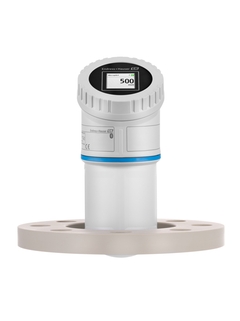

Micropilot FMR30B, 80mm antenna, light mode display, slip on flange
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    +/- 2mm (0.08")

  • Process temperature

    -40…+80°C
    (-40…+176°F)

  • Process pressure / max. overpressure limit

    -1…3 bar
    (-14,5…43 psi)

  • Max. measurement distance

    30m (98.4 ft)

  • Main wetted parts

    PVDF, PBT/PC

Field of application

The Micropilot FMR30B is made for continuous non-contact level measurement equipped with 80 GHz-technology. The installation and commissioning of the device is fast and easy due to its simple design and guiding wizards. Remote access via Bluetooth or on-site access via the color touch display ensures easy operation. With on-demand process verification and device diagnostics, thanks to Heartbeat Technology, downtime can be reduced. The compact device is ideal for narrow installation conditions.

The Micropilot FMR30B is a free space radar device with a measuring range of up to 30m (98ft) for level measurement in liquids and solids. It is suitable for utility applications across all industries and the perfect match for applications in Water & Wastewater as well as for basic applications in Mining, Minerals & Metals and Food & Beverage industry:

  • Open baisins

  • River monitoring

  • Sewer management

  • Pump station / lift station

  • Open channel flow

  • IBC and storage tanks

  • Silos

  • Stockpiles

  • Pneumatic conveying

Benefits

  • Fast commissioning and operation thanks to guided setup sequences (wizards)

  • Bluetooth connectivity enables easy, reliable and encrypted wireless remote access

  • Comfortable on-site access via color touch display

  • Device identification during Bluetooth connection thanks to “It’s me-function” (flashing display)

  • Simple device selection thanks to clear segmentation and easy configuration

  • Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption
