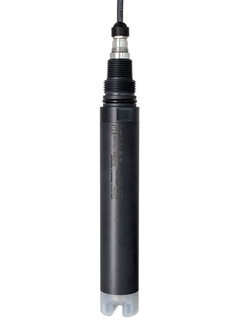

Turbimax CUS50D is a turbidity sensor for industrial wastewater and process applications.

Turbidity and suspended solids sensor
Turbimax CUS50D

Memosens sensor for turbidity, suspended solids and absorption measurement

CUS50D
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Turbimax CUS50D is a turbidity sensor for industrial wastewater and process applications.
  • F
  • L
  • E
  • X
©Endress+Hauser

Turbimax CUS50D is made for industrial wastewater and process applications. Its sensor head consists completely of a robust, dirt-repellent Teflon derivative.

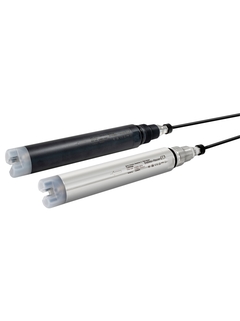

The sensor housing of Turbimax CUS50D is available in stainless steel and plastic.
  • F
  • L
  • E
  • X
©Endress+Hauser

The sensor housing of Turbimax CUS50D is available in stainless steel and plastic.

Turbimax CUS50D is made for industrial wastewater and process applications. Its sensor head consists completely of a robust, dirt-repellent Teflon derivative.

Specs at a glance

  • Measuring range

    40 to 4 000 FAU
    0 to 60 g/L suspended solids
    0 to 10 OD

  • Process temperature

    Process temperature -20 to 85 °C (-4 to 185 °F)
    Ambient temperature -20 to 60 °C (-4 to 140 °F)

  • Process pressure

    0.5 to 4.5 bar (7.3 to 65.3 psi) absolute

Field of application

Turbimax CUS50D is a smart sensor that allows unattended operation in a wide range of industrial wastewater and process applications. Its absorption principle enables single-point-calibration. Choose from different integrated analytical models to adapt the sensor to your specific application. With Memosens digital technology, Turbimax CUS50D combines maximum process and data integrity with simple operation. It resists corrosion and enables lab calibration.

Turbimax CUS50D measures turbidity, suspended solids and absorption in:

  • Industrial wastewater and utilities:
    - Measurement of the solids content in process and wastewater sludge
    - Flocculent dosing via absorption measurement
    - Concentration measurement of milk products in wastewater

  • Process media:
    Concentration measurement of process media, e.g. titanium dioxide

  • Highly absorptive media:
    Concentration measurement in very dark media, e.g. in the 4th cleaning step of sewage treatment plants

Benefits

  • High level of measurement accuracy and repeatability for stable measurements – in the middle and high turbidity measuring range

  • High chemical resistance, low maintenance required: Sensor head consists completely of a dirt-repellent Teflon derivative.

  • The robust plastic version of the sensor is designed for the use in corrosive media or saltwater.

  • Fast and easy commissioning: Sensor comes pre-calibrated, includes various application models and can easily be adjusted via single-point-calibration.

  • Automatic sludge model independently selects the optimum signal path for every sludge type.

  • Perfect process adaption: Fast sensor positioning with a large variety of Endress+Hauser assemblies.

Videos

  • Turbidity is the cloudiness of a liquid caused by suspended particles. This video shows how turbidity measuring principles work.
