Liquiline System CA80AM - High-precision process analyzer for ammonium measurement

Ammonium analyzer
Liquiline System CA80AM

Colorimetric system for online monitoring of water and wastewater treatment

CA80AM

Compare

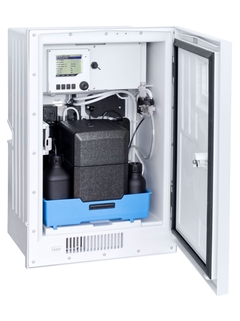

Liquiline System CA80AM ammonium analyzer with cooling for extended reagent lifetime

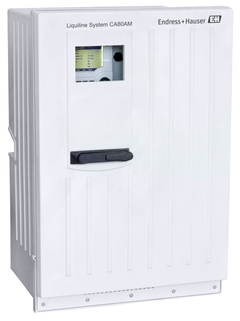

Liquiline System CA80AM ammonium analyzer - Cost-efficient version without cooling

Sample collector with level detection for the monitoring of sample transport

Specs at a glance

Measuring range

0.05 to 20 mg/l NH4-N
0.5 to 50 mg/l NH4-N
1 to 100 mg/l NH4-N
0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l NH4-N
Process temperature

4 to 40 °C (39 to 104 °F)
Process pressure

Unpressurized
Measuring method

Comply with standard colorimetric measuring principle - indophenol blue method following ISO 7150-1, DIN 38406-5 and GB 7481-87

See all specifications

Field of application

Liquiline System CA80AM offers high-precision ammonium measurement in all critical control points. As member of the Liquiline platform, it enables plug & play and easy upgrade to a measuring station - minimizing the installation effort. Automatic calibration and cleaning as well as the low consumption of reagents save you operating and maintenance costs. Advanced diagnostics with remote access ensure process safety and support you in providing process documentation to the authorities.

Liquiline System CA80AM monitors and controls:

Inlets of wastewater treatment plants
Outlets of wastewater treatment plants for documentation purposes
Aeration basins
Water treatment
Cleaning capacity of municipal and industrial wastewater plants

Benefits

Fast commissioning and plug & play thanks to Memosens technology and user-friendly operation
Easy upgrade of functionality - even to a complete measuring station - simply by adding modules and connecting Memosens sensors
Advanced diagnostics with remote access for increased process safety
Reduced operating costs through automatic, configurable calibration and cleaning and long reagent shelf life with optional cooling module
Compliance with standard colorimetric measuring principle - indophenol blue method - following ISO 7150-1, DIN 38406-5 and GB 7481-87

Videos

Ammonium concentration in a liquid can be measured using the colorimetric measuring principle. This video shows what it is about and how this measuring principle works.
