Specs at a glance
-
Process temperature
0 to 50°C
32 to 122 °F -
Process pressure
0 to 6 bar abs.
0 to 87 psi
Field of application

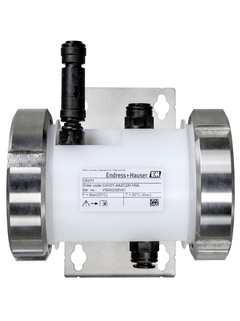

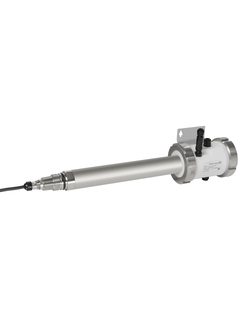

CAV01 allows for monitoring of up to 5 parameters when a Memosens Wave CAS80E spectrometer or a Viomax CAS51D nitrate/SAC sensor is installed. Thanks to the sensors' fast response times and continuous measurements, unexpected events in the process are identified at an early stage. The assembly's integrated pressure cleaning ensures extended maintenance intervals. CAV01 enables accurate measurements at low flows of 0.1 to 10 l/h, resulting in a minimum water loss.
CAV01 flow assembly is suitable for by-pass measurement of various parameters such as SAC54, TOCeq, CODeq, BODeq, DOCeq, turbidity, TSS, APHA/Hazen, nitrate in the following applications:
Drinking water treatment and network monitoring
Quality control of all measuring points in drinking water production
Raw water monitoring
Process water treatment and monitoring
Water re-use monitoring
Cooling water and condensate
Monitoring of municipal and industrial wastewater
Control of aeration basins
Benefits
Extended maintenance intervals thanks to optimized, automatic pressure cleaning.
Minimum water loss: Precise measurement at low sample flow
Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 50 °C (122 °F)
Full compatibility with all path lengths of Memosens Wave CAS80E and Viomax CAS51D
Simple installation thanks to pre-mounted wall bracket and fixed sensor orientation
Fast maintenance thanks to tool-free deinstallation
