Specs at a glance
-
Accuracy
Standard 0.15%
Platinum 0.075% -
Process temperature
-70°C…400°C
(-94°F…752°F) -
Pressure measuring range
1 bar...400 bar
(15 psi...6000 psi) -
Process pressure / max. overpressure limit
600 bar (9000 psi)
-
Main wetted parts
316L
AlloyC
Montel
Tantal
Rhodium -
Max. measurement distance
4000m (13.123ft) H2O
-
Material process membrane
316L, AlloyC,
Tantal, PTFE,
Rhodium>Gold -
Measuring cell
400 mbar...400 bar
(5.8 psi...6000 psi)
relative/ absolute
Field of application

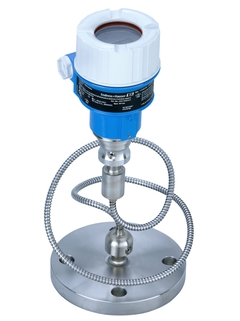

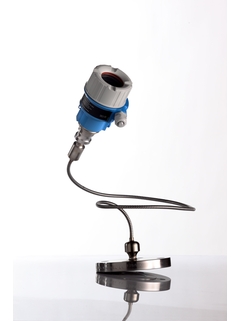

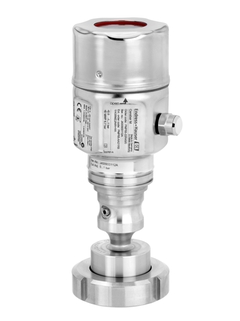

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)
Accuracy: ±0.15%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals
Benefits
Large variety of different process connections and membrane materials

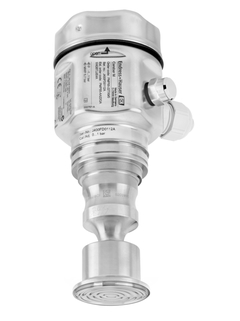

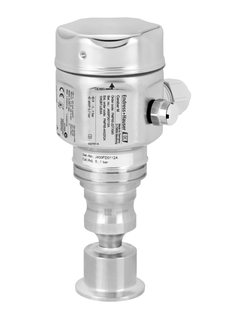

New TempC Membrane minimizes influences of ambient and process temperature fluctuations
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
Modular concept for easy replacement of display or electronics
Seamless and independent system integration (HART/PA/FF)
Videos
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Manufacturer Declaration
Product family: Cerabar M
English version - 08/2020
Product root: PMP55- Declaration number: HE_01334_01.20 Manufacturer specification: 1935/2004
EN 20/08/2020Language:
English
Version:
20/08/2020
File size:
1.9 MB
File name:
HE_01334_01.20_Cerabar M PMP55 Diaphragm seal NEUMO BioControl D50 TSP 71355364.pdf
-
-
-
Manufacturer Declaration
Product family: Cerabar, Cerabar M, Cerabar S, Deltabar, Deltabar M, Deltabar S, Deltapilot M, Deltapilot S
English version - 01/2023
Product root: FMB50-, FMB70-, FMD72-, FMD77-, FMD78-, PMD55-, PMD75-, PMP23-, PMP51-, PMP55-, PMP71-, PMP75- Declaration number: HE_01716_01.23 Manufacturer specification: Food hygiene
Language:
English
Version:
03/01/2023
File size:
201.1 KB
File name:
HE_01716_01.23_DoC_FCM China.pdf
-
201 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
TI Cerabar M PMC51, PMP51 , PMP55
Process pressure measurement
4 to 20 mA, HART, IO-Link, PA, FFEN 01/04/202422/08/202206/09/202101/04/202016/04/2019Language:
English
Version:
01/04/2024
File size:
3.8 MB
File name:
TI00436PEN_3224-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar M PMC51, PMP51/55 Analog
With ceramic and silicon sensors
modular design and easy
operationEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
1.1 MB
File name:
BA00385PEN_2016.pdf
-
-
-
Operating Instruction (BA)
Cerabar M /Deltabar M /Deltapilot M Operating Instructions PROFIBUS PA
Cerabar M PMC51, PMP51, PMP55, Pressure transmitter
Deltabar M
PMD55 Differential pressure transmitter Deltapilot M FMEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
7.8 MB
File name:
BA00383PEN_0816.pdf
-
-
-
Operating Instruction (BA)
Cerabar M, Deltapilot M
Pressure / hydrostatics
IO-LinkEN 22/08/202231/07/2021Language:
English
Version:
22/08/2022
File size:
1.7 MB
File name:
BA02136PEN_0222-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar M, Deltabar M, Deltapilot M HART (V 01.00.zz)
Cerabar M PMC51, PMP51/55 Pressure transmitter
Deltabar M
PMD55
Differential pressure transmitter
Deltapilot M FMB50/5EN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
4.8 MB
File name:
BA00382PEN_2016.pdf
-
-
-
Operating Instruction (BA)
Cerabar M / Deltabar M / Deltapilot M, Operating Instructions FOUNDATION Fieldbus
Cerabar M PMC51, PMP51, PMP55 Pressure transmitter
Deltabar M PMD55 Differential pressure transmitter
Deltapilot M FMB50 Hydrostatic pressure transmitterEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
7.8 MB
File name:
BA00384PEN_0816.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
FOUNDATION FieldbusEN 30/09/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
30/09/2021
File size:
914.7 KB
File name:
KA01032PEN_0621-00.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
PROFIBUS PAEN 30/09/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
30/09/2021
File size:
943.6 KB
File name:
KA01031PEN_0621-00.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
AnalogEN 15/12/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
15/12/2021
File size:
830.8 KB
File name:
KA01036PEN_1821-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cable gland M20 PA, o-ring VMQ
-
Adapter housing/cable entry
Drawing numberOrder code1552002449 -
-
Cable gland M20 PA, O-ring EPDM/PTFE
-
Adapter housing/cable entry
Drawing numberOrder code1571092709 -
-
Cable gland M20 Metal, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1571092711 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Drawing numberOrder code1571092712 -
-
Plug 3p M12/M20, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552005984 -
-
M12 plug, IO-Link, housing side
-
Adapter housing/cable entry
Drawing numberOrder code1571570154 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552020762 -
-
Plug valve, F30/F31, seal NBR
-
Adapter housing/cable entry
Drawing numberOrder code1571120017 -
-
Cover F15 316L, gasket
-
Cover
Drawing numberOrder code2052027000 -
-
Cover F15 316L, sight glass, gasket
-
Cover
Drawing numberOrder code2052027002 -
-
Cover F15, sight glass PC, 316L, gasket
-
Cover
Drawing numberOrder code2052028207 -
-
Cover F15 316L,claw,sight glass,gasket
-
Cover
Drawing numberOrder code2052028267 -
-
Cover F15 316L, claw, gasket
-
Cover
Drawing numberOrder code2052028268 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Drawing numberOrder code2152028179 -
-
Cover F30/31/34 Alu, gasket
-
Cover
Drawing numberOrder code2071092705 -
-
Cover F30/31 Alu, Ex d, gasket
-
Cover
Drawing numberOrder code2071092706 -
-
Cover F30/31/34 Alu, sight glass, gasket
-
Cover
Drawing numberOrder code2071092707 -
-
Cover F30/31 Alu,Exd,sight glass, gasket
-
Cover
Drawing numberOrder code2071092708 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Drawing numberOrder code2152020429 -
-
Profile gasket silicone, 5 pieces
-
further parts
Order code52023572 -
-
Display module VU340, Cbar/Dbar/Dpilot M
-
Display
Drawing numberOrder code4071091670 -
-
Electronics FMB5x, PMC51, PMP5x, PMD55
-
Electronic
Drawing numberOrder code30XPP0001- -
-
Holder Display Dbar/Cbar/Dpilot M
-
Fixing
Drawing numberOrder code4171094113 -
-
Analog display VU340, Cbar, bracket
-
Display
Drawing numberOrder code4071111067 -
-
Screw set, screwed separator
-
Maintenance and wear parts
Drawing numberOrder code5671518699 -
-
Metal gasket, screwed separator
-
Sealing
Drawing numberOrder code5771518705 -
-
Cable PE,80inch,sep. housing FMXXX/PMXXX
-
further parts
Order code71043886 -
-
Cable PE,200inch,sep.housing FMXXX/PMXXX
-
further parts
Order code71043888 -
-
Cable PE,400inch,sep.housing FMXXX/PMXXX
-
further parts
Order code71043889 -
-
Cable FEP,200inch,sep.housingFMXXX/PMXXX
-
further parts
Order code71070738 -
-
Profile gasket silicone, 5 pieces
-
further parts
Order code52023572 -
-
Weld-in adapter UNI D85, 316L
-
further parts
Order code52006262 -
-
Weld-in adapter UNI D85, 316L, 3.1
-
further parts
Order code52010173 -
-
Weld-in adapter UNI D65, 316L, 3.1
-
further parts
Order code52010174 -
-
Weld-in adapter UNI D65, 316L
-
further parts
Order code214880-0002 -
-
Mountingset Cerabar,Deltapilot,Levelflex
Order code71102216 -
Weld-in adapter G1-1/2, 316L
Order code52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Order code52024470 -
Adapter Uni, Clamp 3", 316L, 3.1
Order code71350314 -
Adapter Uni, Clamp 3", 316L
Order code71350315 -
Weld-in adapter DRD DN50, 316L
Order code52002041 -
Weld-in adapter DRD DN50, 316L, 3.1
Order code52011899 -
Weld-in dummy, adapter G1-1/2
Order code52024471 -
Weld-in dummy, flange DRD DN50, 65mm
Order code71114209 -
Flushing ring NPS 1" Cl. 150-2500, 316L
Order code71377369 -
Flushing ring NPS 2" Cl. 150-2500, 316L
Order code71377370 -
Flushing ring NPS 3" Cl. 150-2500, 316L
Order code71377371 -
Flushing ring DN25, PN16-400, 316L
Order code71377379 -
Flushing ring DN50, PN16-400, 316L
Order code71377380 -
Flushing ring DN80, PN16-400, 316L
Order code71377383 -
Blind plug weld-in adapter UNI D65/85
Order code71580894
