Specs at a glance
-
Input
4x 4...20 mA analog
4x digital
Pulse counter
Modbus TCP
Modbus RS485 -
Output
4x digital
Modbus TCP
Modbus RS485
Field of application

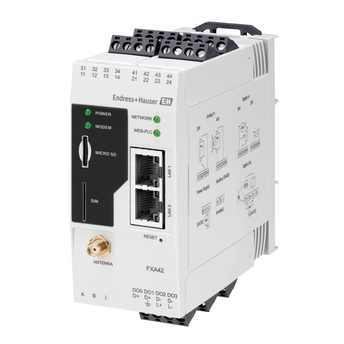

Fieldgate FXA42 is developed for monitoring of field devices with digital or 4 to 20mA interface regardless of location. It supports communication interfaces like Ethernet, WLAN or cellular communication. With its integrated web server technology it can easily be configured online and measured values can be visualized online. FXA42 also offers data logging and alarm management functions.
For remote monitoring of connected 4 to 20mA analog as well as digital field devices via Ethernet, WLAN or cellular communication.
Measured values can be viewed with a standard internet browser
Configuration of measuring and transmission cycles
Configurable monitoring of limit values with alarm signaling via email or text
Four 4 to 20mA inputs, 4 digital input and output channels
Modbus TCP and Modbus RTU
Benefits
-
Level, flow and pressure visualization at the desk regardless of location
-
Simple configuration of Fieldgate and easy visualization of measured values via its integrated web server
-
Connects to SupplyCare Enterprise and SupplyCare Hosting
-
Advanced functions and actions from logic programming
-
Limit value monitoring with alarm via email or SMS
-
Tank monitoring with limit status from the analog inputs (HH, H, L, LL)
-
Easy connection to field devices and connectivity to 3rd party systems
