Name: RTD Thermometer TR61
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

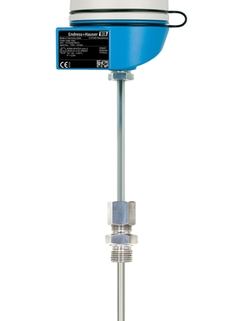

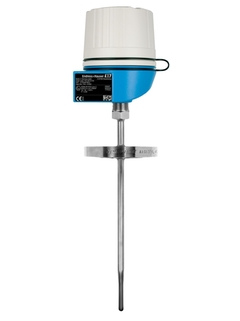

Product picture of resistance thermometer TR61

Predecessor

TR60
NC11
NC12

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-
F

L

E

X
iTHERM TM121

Fundamental metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

metric style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
with neck
incl. thermowell / protection tube (metal)
usable with insert StrongSens
Thermowell / protection tube

welded protection tube
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

9,0 mm (0,35'')
11,0 mm (0,43'')
12,0 mm (0,47'')
Max. immersion length on request

up to 10.000,00 mm (393,70'')
Material protection tube/ thermowell

1.4404 (316L)
1.4571 (316Ti)
AlloyC276 (2.4819)
Optional coating

Not defined
Process connection

male thread:
G1/2"
G3/4"
G1"
NPT1/2"
NPT3/4"
M20x1,5
compression fitting:
G1/2"
flange:
ASME 1" 150 RF (B16.5)
ASME 1" 300 RF (B16.5)
DN25 PN40 B1 (EN1092)
DN40 PN40 B1(EN1092)
DN50 PN40 B1 (EN1092)
Tip shape

straight
reduced
tapered
Surface roughness Ra

Not defined
Operating temperature range

PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Max. process pressure (static)

at 20 °C: 100 bar (1.450 psi)
Accuracy

class A acc. to IEC 60751
class AA acc. to IEC 60751
Response time

depending on configuration
t50 = 8 s
t90 = 21 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6
ATEX II 2 GD Ex d IIC
ATEX II 3 G Ex nA IIC T6, II3D
ATEX II 1/2 GD Ex d IIC
IECEx Ex d Ga/Gb IIC T6/T5/T4,Ex tD A20
IECEx Ex ia IIC T6 Ga/Gb
IECEx Ex d IIC T6/T5/T4
IECEx Ex d IIC T6/T5/T4, Ex tD A21
EAC Ex ia IIC T6 Ga + DIP
EAC Ex d IIC T6 Gb + DIP
NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450
NEPSI Ex d IIC T6
NEPSI Ex nA IIC T6
Explosion proof
Certification

Gost Metrology
SIL (transmitter only)

Filter

48 documents

Technical Information (TI)

防爆型铠装热电阻（一体化温变）

Technical Information (TI)

Chinese version - 07/2005

New version available in English

可更换铠芯，自带热套管，齐全的过程连接，智能可编程温变，
4...20mA, HART, PROFIBUS PA或基金会现场总线(FF)信号输出

Select other languages, versions and see details Hide selection and details

	EN
01/07/2005

Language:	Chinese
Version:	01/07/2005
File size:	518.9 KB
File name:	TI280T.pdf

Share
- Copy Link
- Send Mail
Download

Technical Information (TI)

Omnigrad S TR61, TC61
