Explosion proof temperature sensor iTHERM ModuLine TM111

iTHERM ModuLine TM111
Industrial modular thermometer

Metric RTD/TC direct contact thermometer for a wide range of industrial applications

TM111

Compare

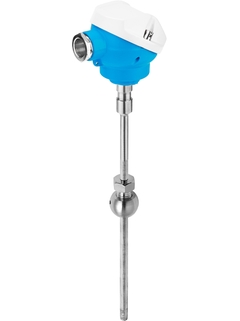

Explosion proof temperature sensor with weld-in compression fitting — Explosion-proof temperature sensor with weld-in compression fitting as process connection

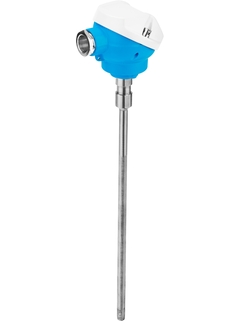

Explosion-proof temperature probe – iTHERM ModuLine TM111 — Explosion-proof temperature sensor without process connection

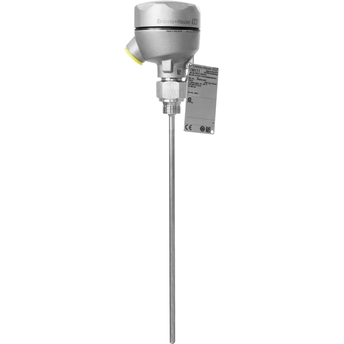

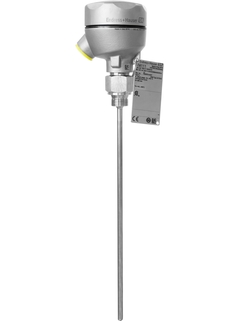

Modular RTD or thermocouple temperature assembly

Specs at a glance

Accuracy

Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time

t90 starting at < 1,5 s iTHERM QuickSens
depending on configuration
Max. process pressure (static)

depending on the configuration
Operating temperature range

PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request

up to 4.500,0 mm (177'')

See all specifications

Field of application

Our explosion-proof temperature sensor iTHERM ModuLine TM111 is ideal for a wide range of industrial applications and hazardous areas. Easy-to-use metric version with outstanding RTD or TC sensor technology. An optional head transmitter, with all common communication protocols – Bluetooth® technology for high measurement accuracy and reliability. It features vibration-resistant and fast-response sensor technology (iTHERM StrongSens and QuickSens).

Universal range of application
Measuring range: –200 to +1.100 °C (–328 to +2.012 °F)
Pressure range up to 75 bar (1088 psi)
Degree of protection: up to IP 68
Vibration-resistant sensor elements up to 60g

Benefits

User-friendly and reliable from product selection to maintenance
iTHERM inserts: globally unique, automated production. Full traceability and consistently high product quality for reliable measured values
iTHERM QuickSens: fastest response times 1.5 s for optimum process control
iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
iTHERM TA30x: variety of terminal heads for easier handling and lower installation and maintenance costs
International certification: explosion protection according to ATEX, IECEx, CSA C US and NEPSI
